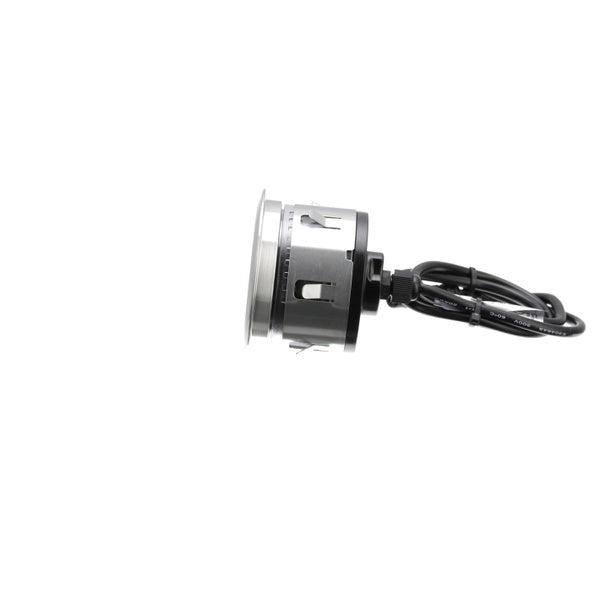

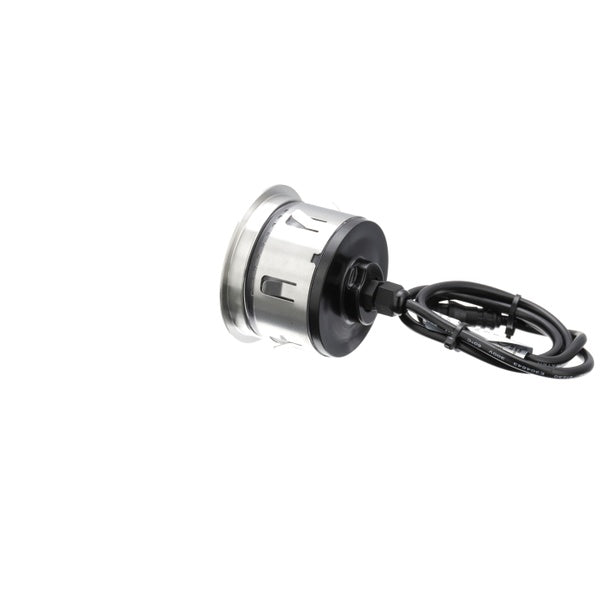

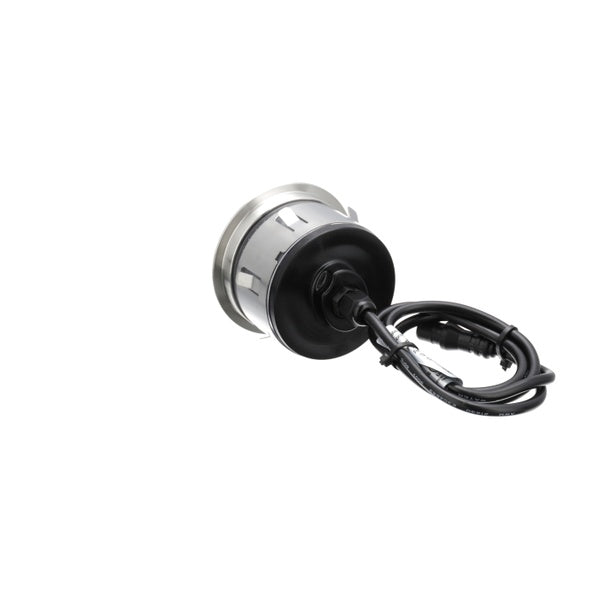

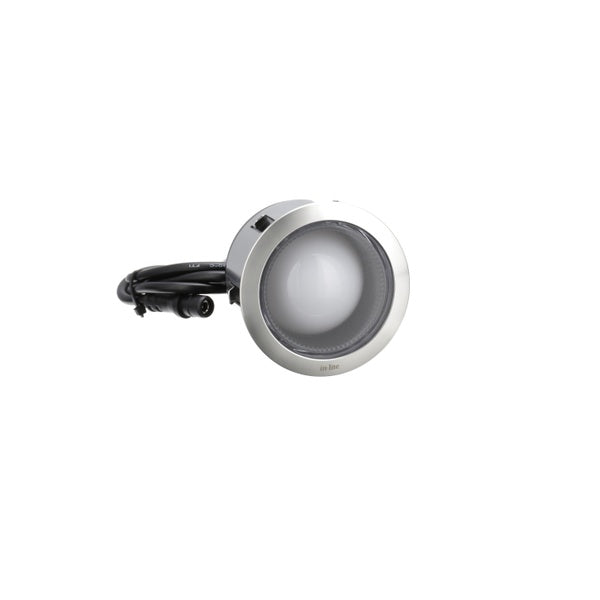

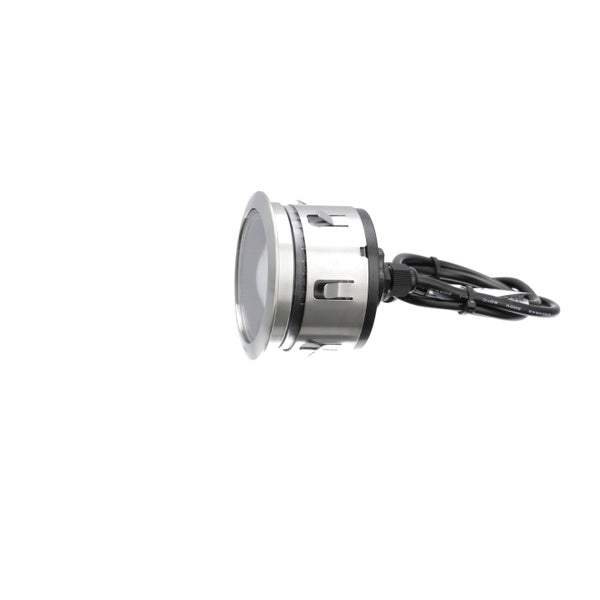

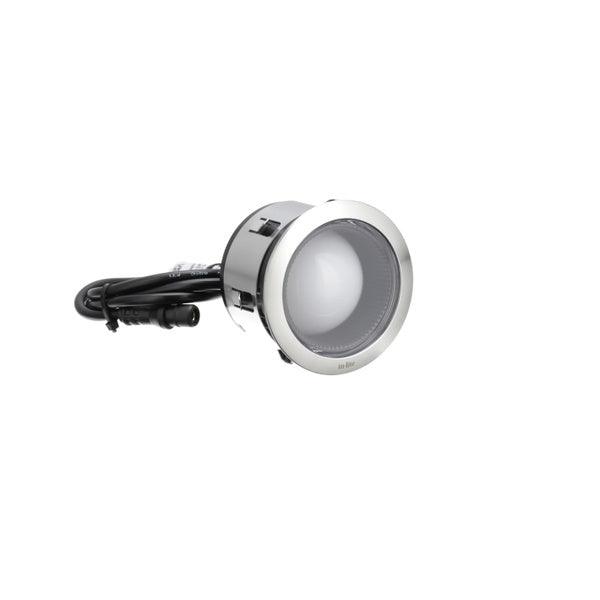

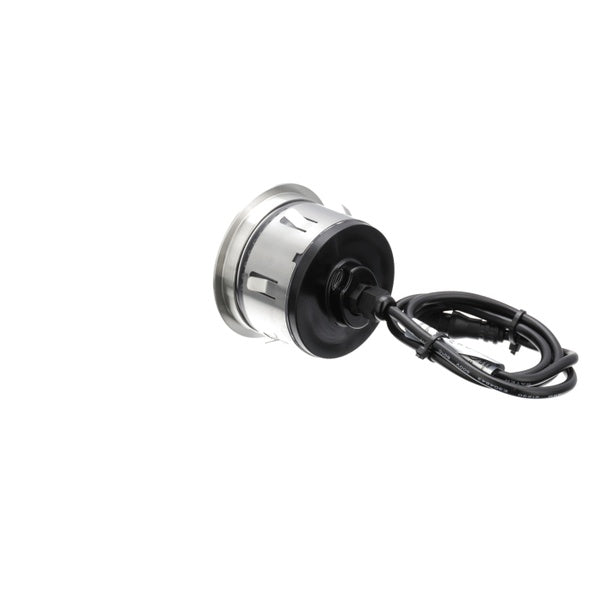

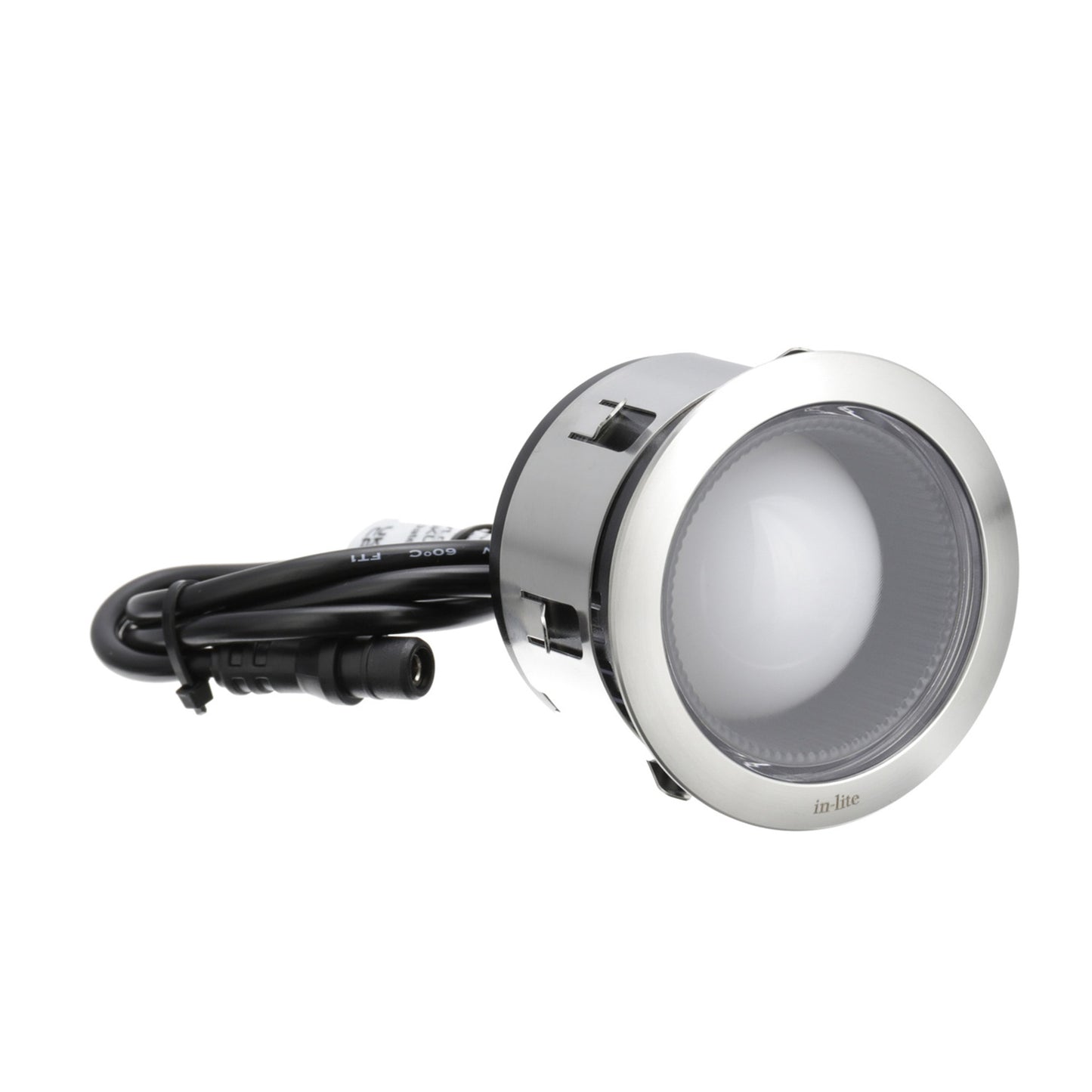

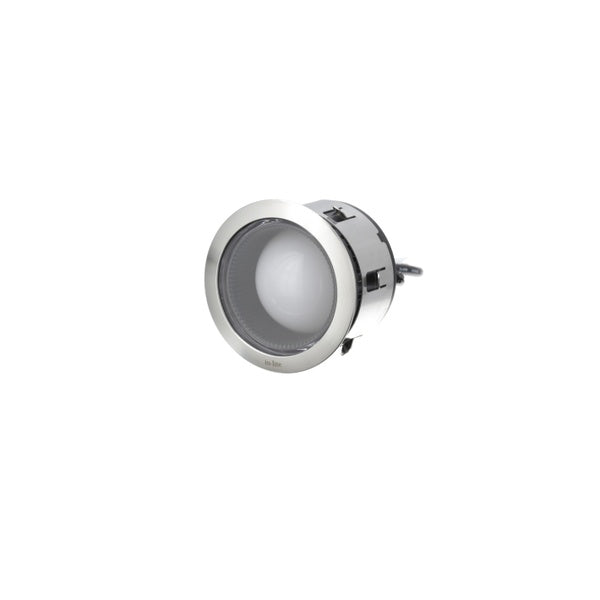

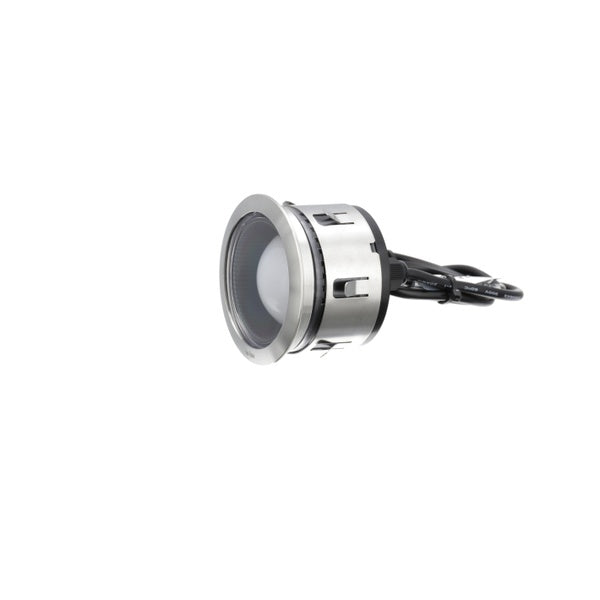

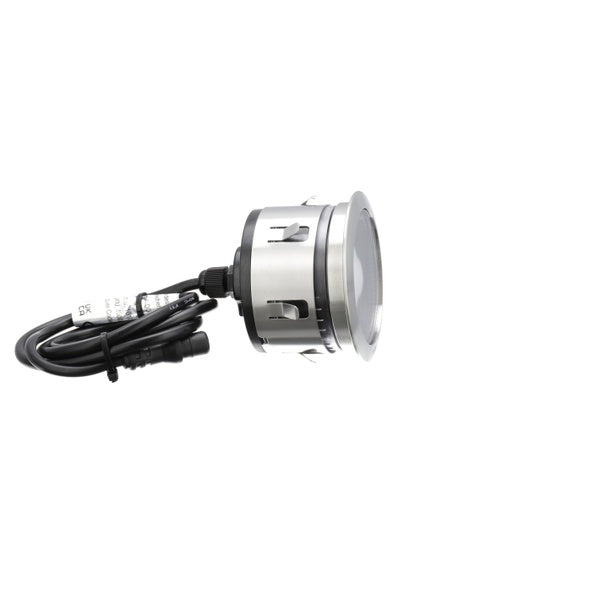

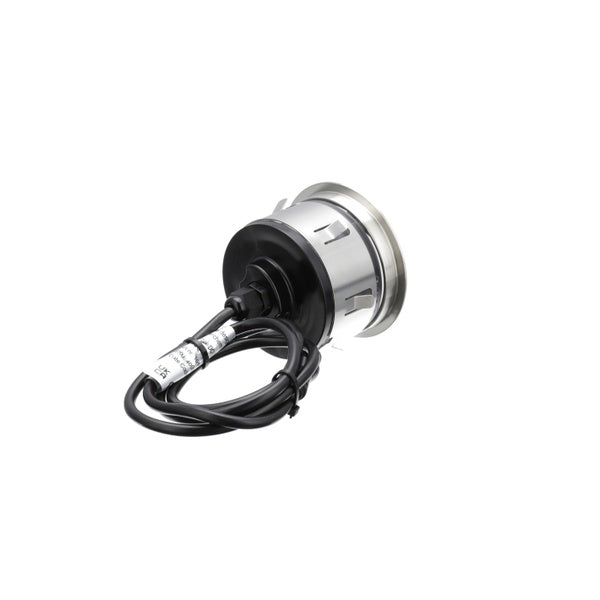

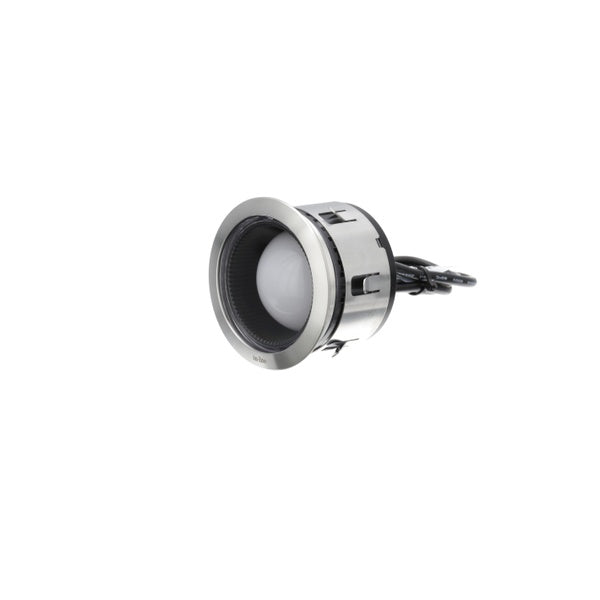

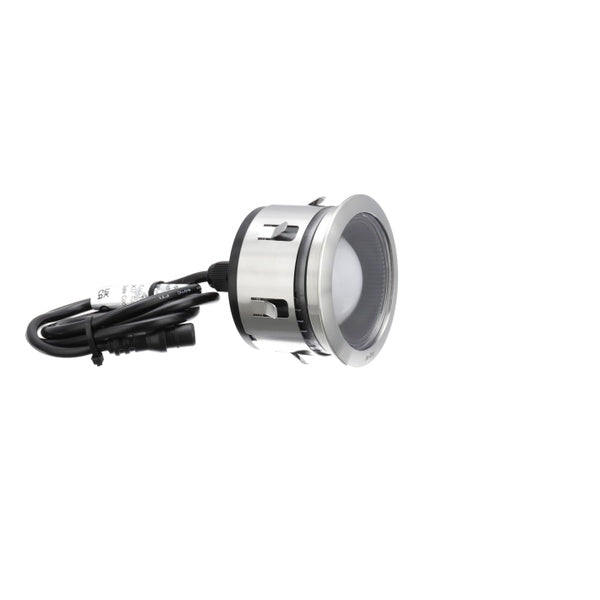

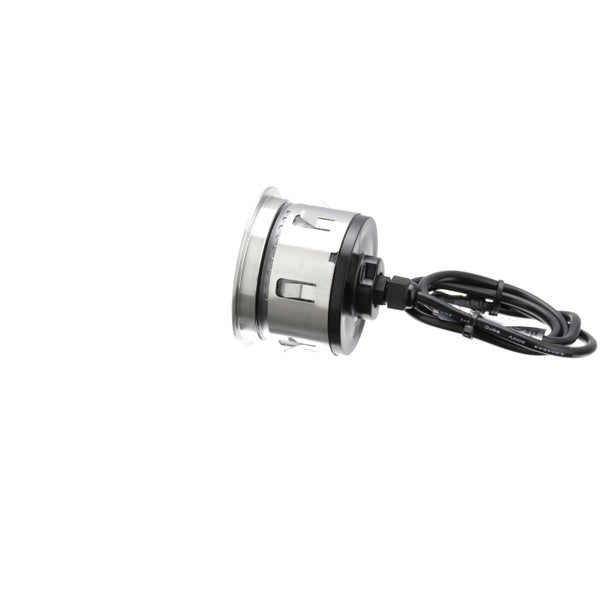

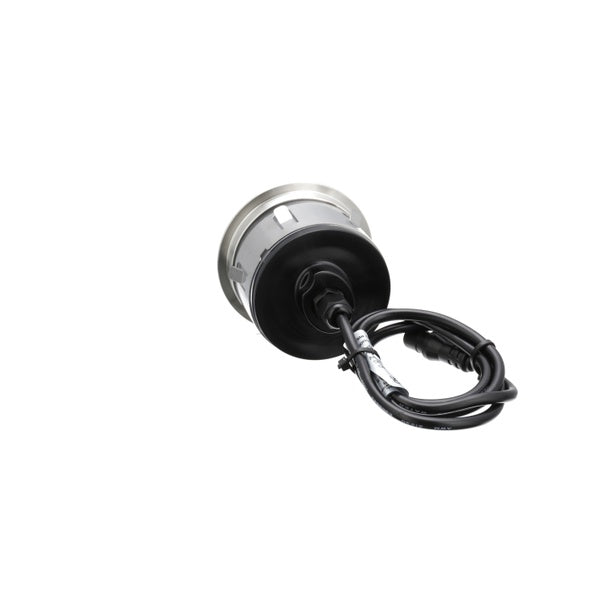

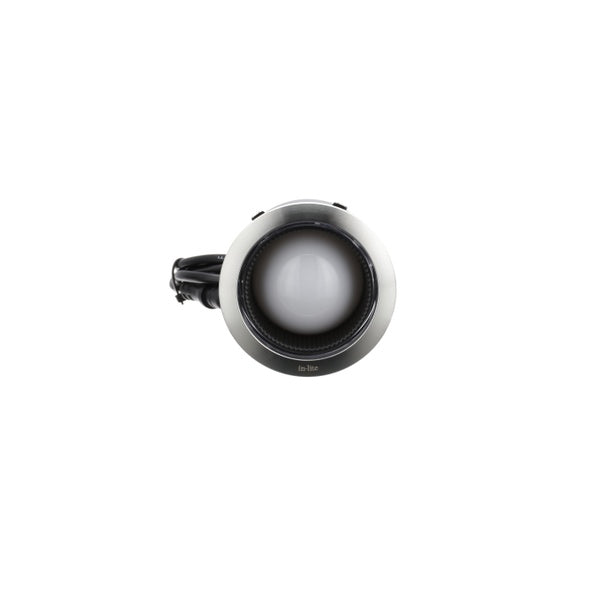

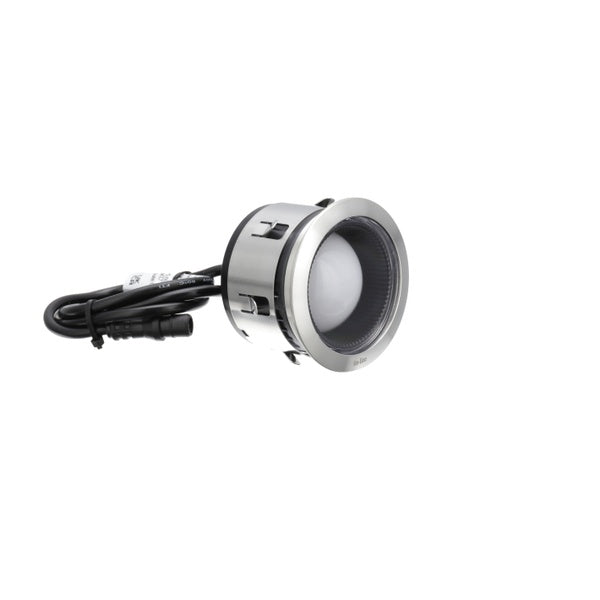

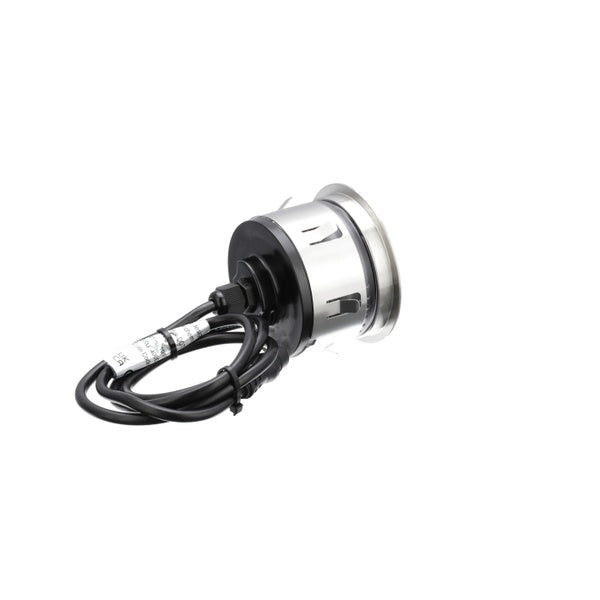

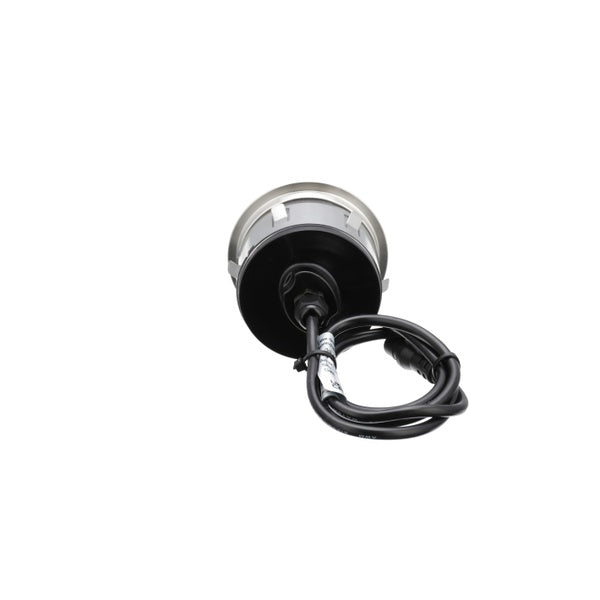

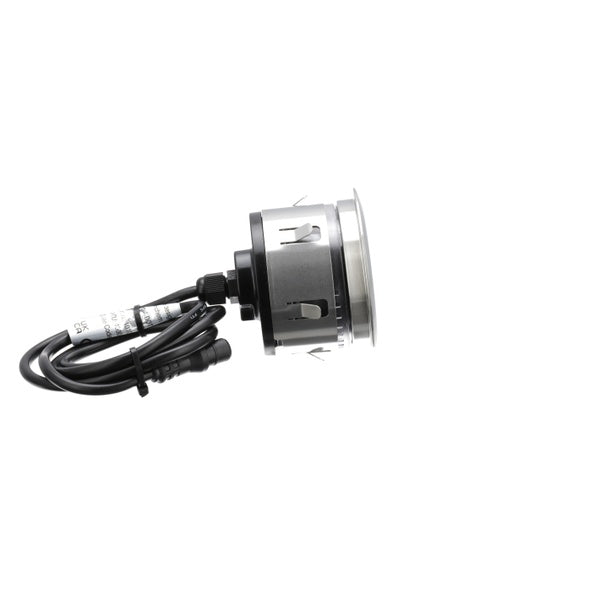

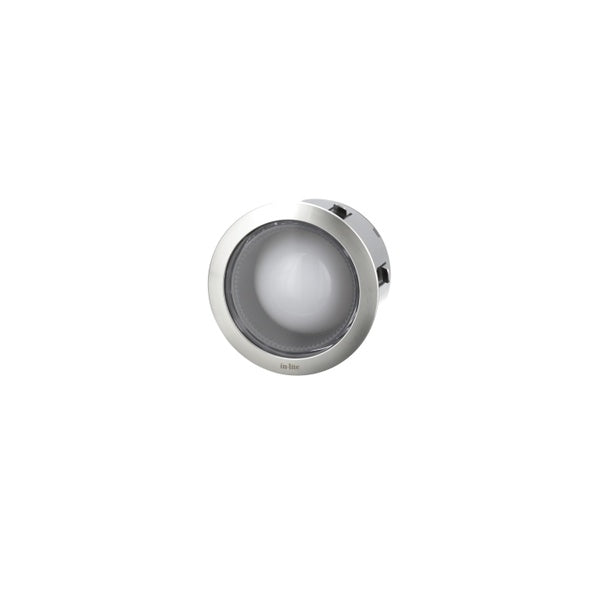

in-lite DOT Stainless Steel: excellent paving illumination

The in-lite DOT is a recessed light that provides subtle outdoor ground lighting for driveways, paths and patios. The warm LED light is softly diffused and non-glaring, which illuminates your paving in a calm and refined way. This makes the DOT ideal for orientation lighting and for adding atmosphere to outdoor spaces.

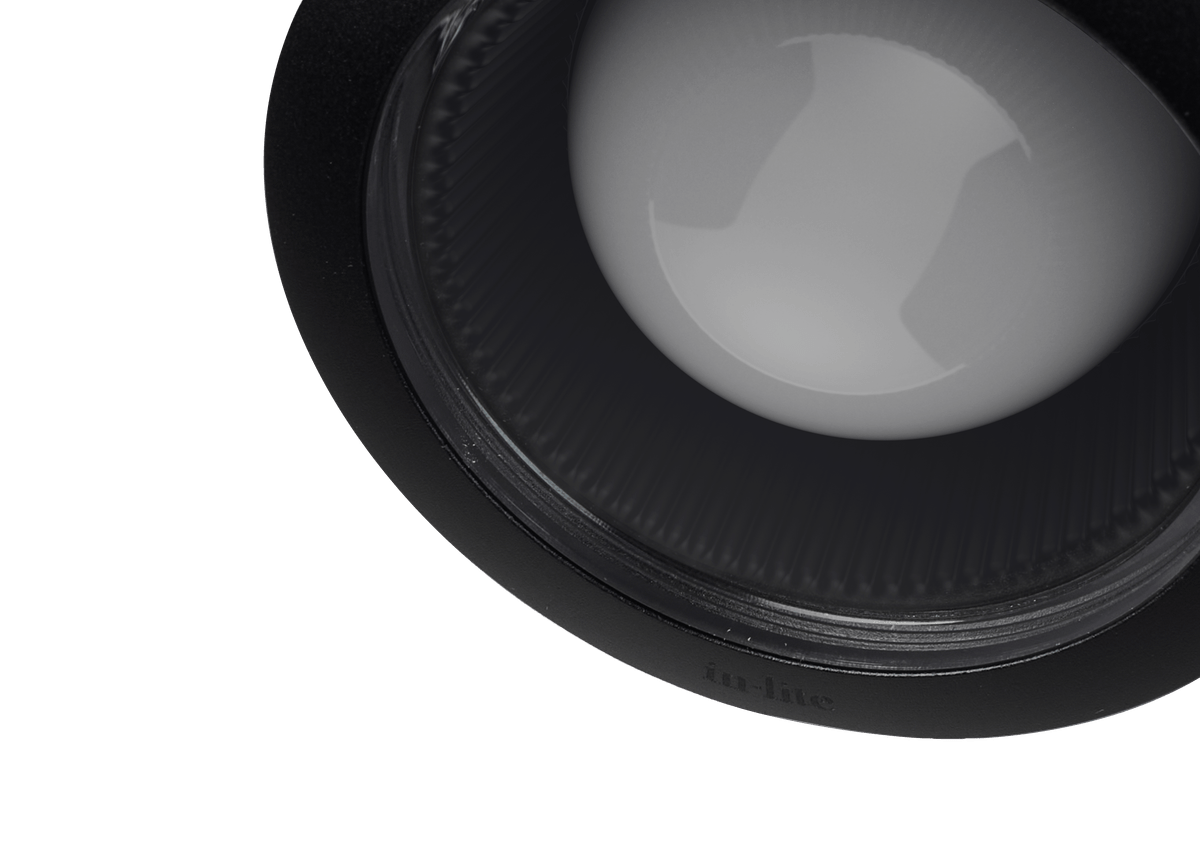

The DOT features a refined ring, available in Stainless Steel, Black and Pearl Grey. These colours are consistent across other in-lite fixtures, making it easy to combine different garden spotlights while maintaining a cohesive style. In addition, there is a smaller variant: the in-lite DOT 22.

Expert tip: if you are mixing DOT sizes, keep the ring finishes consistent across the project for the cleanest, most cohesive result.

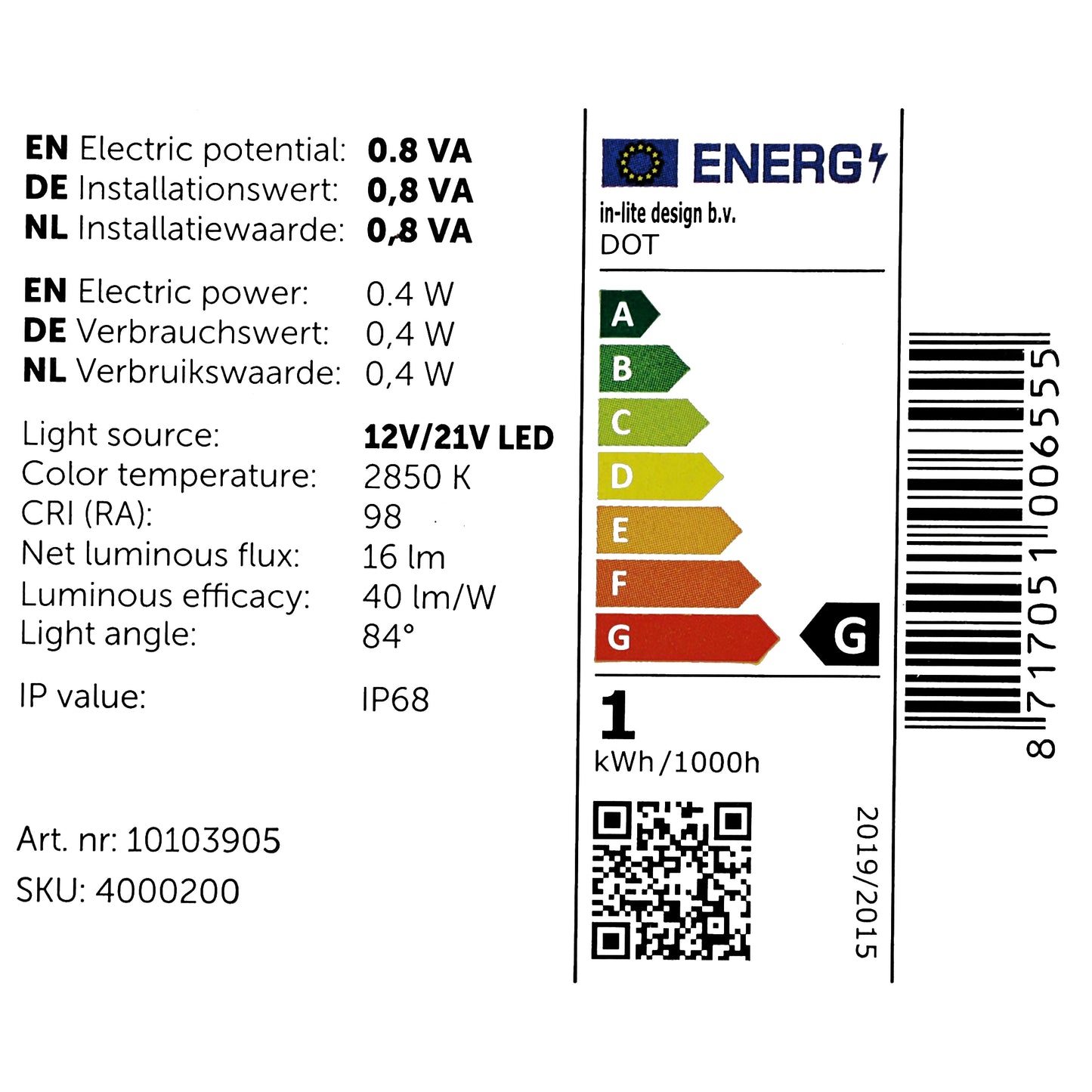

Specifications:

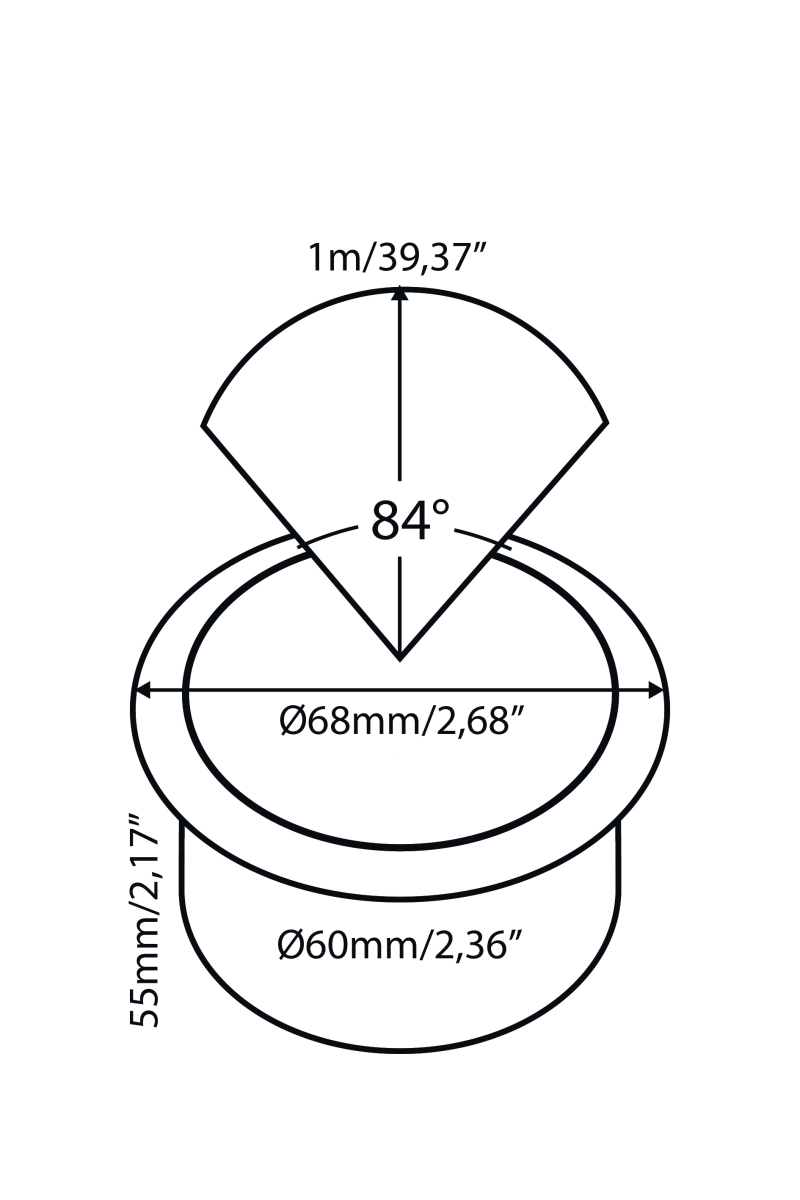

• Size: Ø68 mm
• Colour: Stainless Steel
• Power: 12V / 0,4W / 0.8VA
• Light source: LED
• Average lifespan: Approx. 25.000 hours
• Light range: 1 metre (compact beam)

How to install the in-lite DOT:

The in-lite DOT is easy to install in hard surfaces such as stone or concrete using a cooled diamond drill bit or in wood with a standard wood drill bit. Drill a straight hole with an exact diameter of 60,8 mm for a secure fit. Ensure that the low-voltage cable is positioned beneath the surface and connect it using the Easy-Lock connector. If required, the connection can be extended with in-lite extension cables.

The required installation depth is 55 mm. Make sure the cable and Easy-Lock connector do not obstruct this depth. Place the installation cup onto the fixture and tighten the ring firmly. Connect the spotlight to the Easy-Lock and press the DOT fully into the drilled hole. For installation in soft ground, the optional SPIKE 60 can be used.

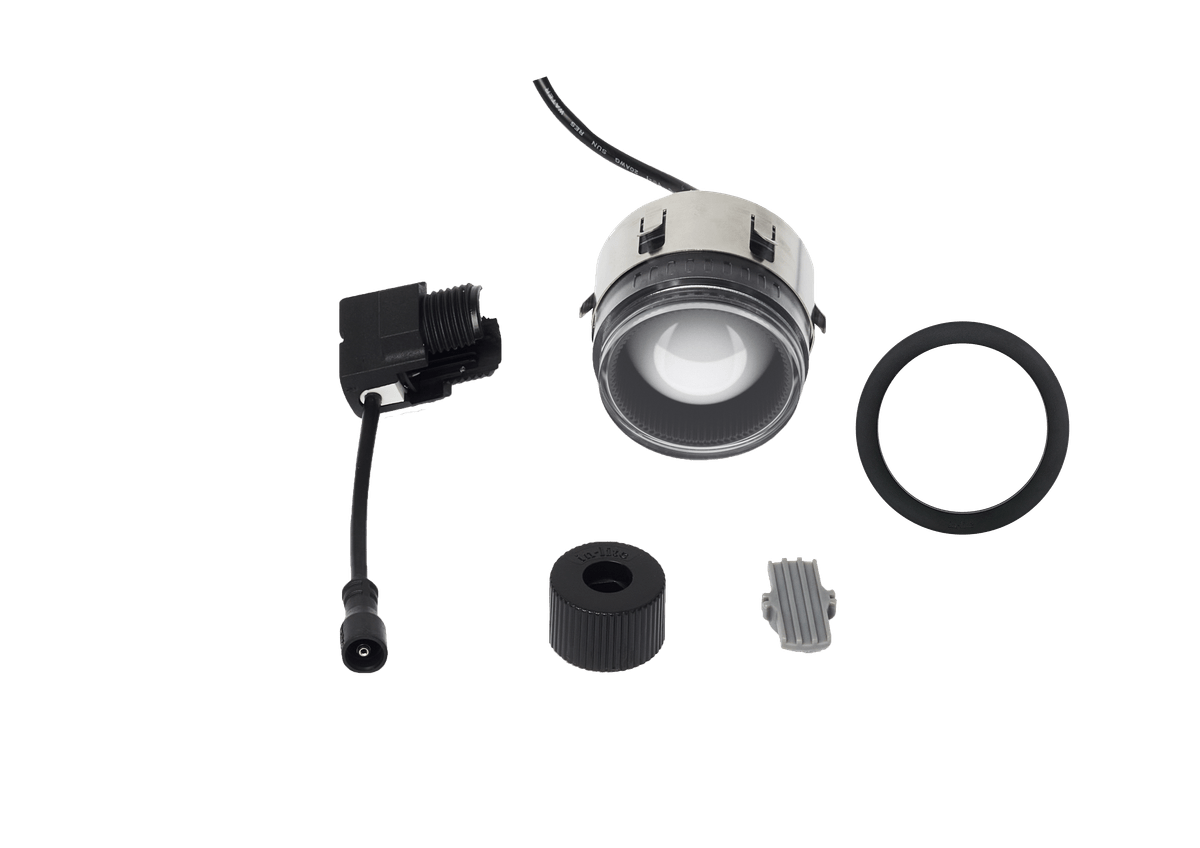

What's included:

• in-lite DOT ground spotlight
• 68 mm Stainless Steel ring
• Installation cup

• Easy-Lock connector
