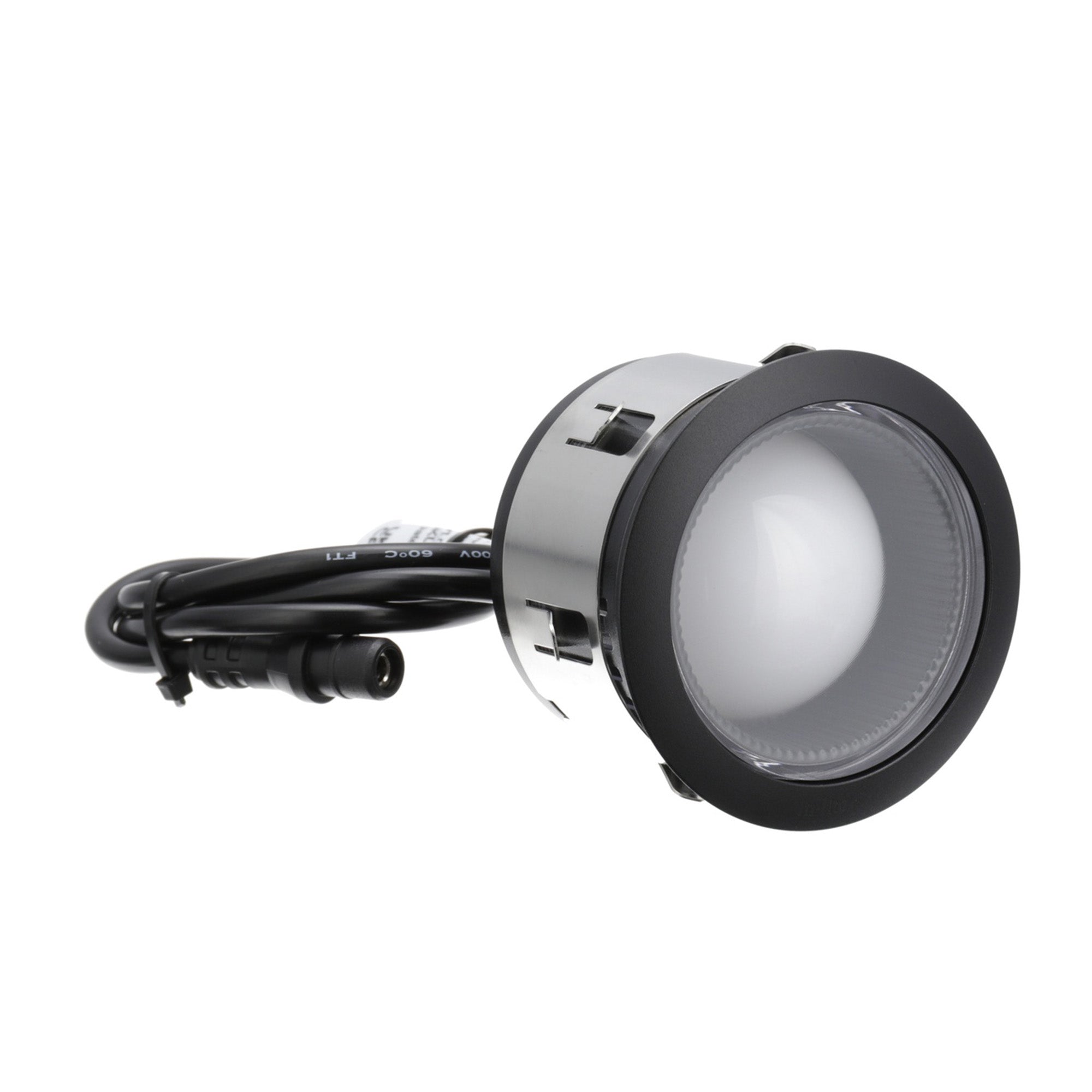

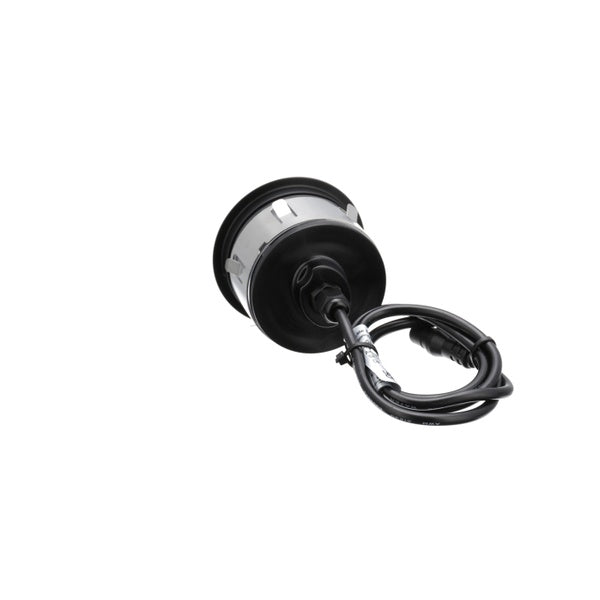

in-lite DOT Black ground spot: Excellent paving illumination

The in-lite DOT ground spot provides subtle outdoor ground lighting for driveways, paths and patios. The warm LED light is softly diffused and non-glaring, which illuminates your paving in a calm and refined way. This makes the DOT ideal for orientation lighting and for adding atmosphere to outdoor spaces.

The DOT features a refined ring, available in Black, Pearl Grey and Stainless Steel. These colours are consistent across other in-lite fixtures, making it easy to combine different garden spotlights while maintaining a cohesive style. In addition, there is a smaller variant: the in-lite DOT 22.

Specialist tip: if you are mixing DOT sizes, keep the ring finishes consistent across the project for the cleanest, most cohesive result.

✔ Available in 3 colours.
✔ Premium appearance.
✔ Easy to install.

Specifications:

• Installation Diameter: 60,8 mm
• Ring Diameter: 68 mm
• Colour: Black
• Power: 12V / 0,4 Watt / 0,8VA
• Light Source: LED
• Burn Hours: Approx. 25.000 hours
• Light Range: 1 metre (bundled light)

• Application: Lighting driveways, paths, or patios

How to install the in-lite DOT:

The in-lite DOT is easy to install in hard surfaces such as stone or concrete using a cooled diamond drill bit, or in wood with a standard wood drill bit. Drill a straight hole with an exact diameter of 60,8 mm for a secure fit. Ensure that the low-voltage cable is positioned beneath the surface and connect it using the Easy-Lock connector. If required, the connection can be extended with in-lite Plug & Play extension cables.

The required installation depth is 55 mm. Make sure the cable and Easy-Lock connector do not obstruct this depth. Place the installation cup onto the fixture and tighten the ring firmly. Connect the spotlight to the Easy-Lock and press the DOT fully into the drilled hole. For installation in soft ground, the optional Spike 60 ground spike can be used.

What's included:

• in-lite DOT ground spotlight
• 68 mm Black ring
• Installation cup
• Easy-Lock connector

Gardenlightsstore.com has the complete in-lite assortment, including other fixtures from the in-lite DOT series. This allows you to combine different ground spots while maintaining a consistent design in your garden. Orders are placed easily through our online shop, with free shipping on orders of €100 or more within Europe. Every in-lite fixture is covered by a five-year in-lite warranty.
