in-lite AIM

The in-lite AIM series combines modular outdoor spotlights with individually adjustable LIGHT HEADS for precise accent lighting. With different heights, mounting options, and configurations, the series can be used to illuminate planting, garden features, paths, and covered outdoor spaces with focused directional light.

Which in-lite AIM is right for your garden?

The right AIM model depends mainly on the height at which you want to position the light, where the fixture will be mounted, and how many directions you want to illuminate. The series ranges from low spotlights for planting to bollards and surface-mounted models, all of which have DUO and TRIPLE configurations for one, two, or three individually adjustable LIGHT HEADS.

Model Fixture type Power supply Key difference Why this model fits

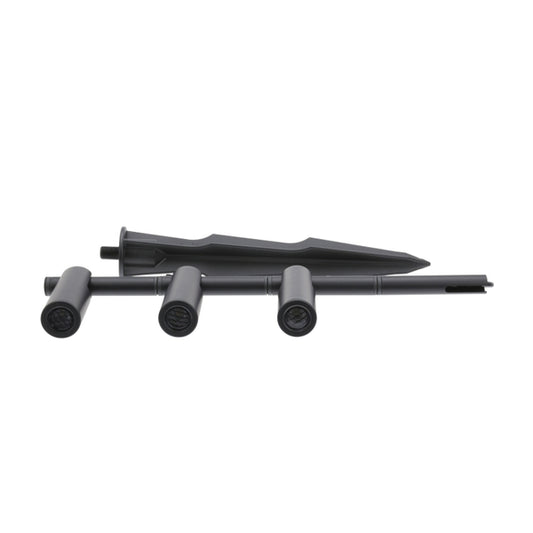

in-lite AIM EXTRA LOW Outdoor spotlight 12V 16 cm high Positions directional light close to low planting, pots, and small garden features

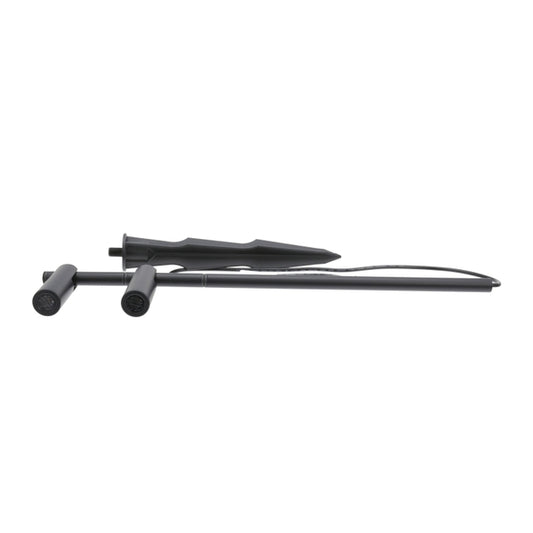

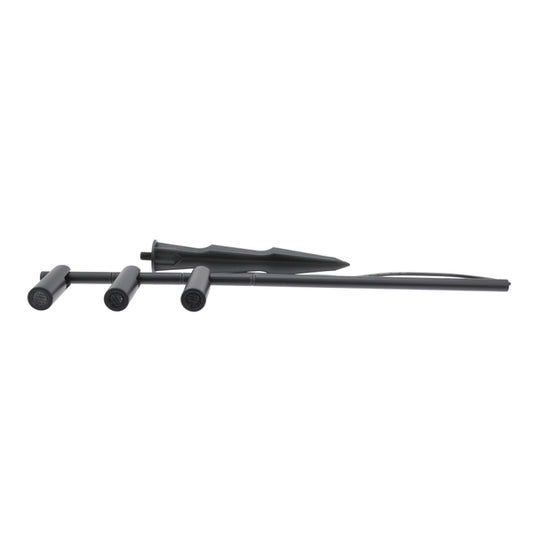

in-lite AIM LOW Outdoor spotlight 12V 40 cm high Raises the light point for borders, shrubs, ornamental grasses, and paths

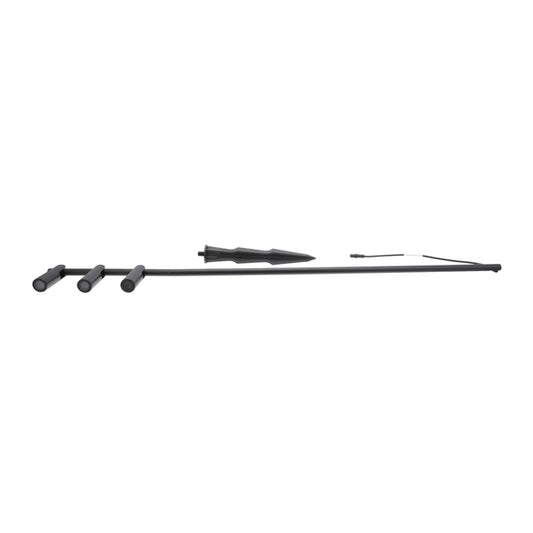

in-lite AIM Outdoor spotlight 12V 80 cm high Positions the light higher for in between taller plants and bigger garden features
in-lite AIM CEILING Surface-mounted spotlight 12V Ceiling- or wall-mounted Provides directional lighting beneath canopies, verandas, and in garden rooms
in-lite AIM FLOOR Bollard 12V Approx. 153 cm high Provides high-level adjustable light around terraces and lounge areas as part of the in-lite 12V system
in-lite AIM FLOOR 230V Bollard 230V Approx. 153 cm high Provides the same freestanding lighting concept where a suitable mains connection is available

Why choose the in-lite AIM series?

  • Modular LIGHT HEAD system
    Choose a SINGLE, DUO or TRIPLE configuration with one, two or three LIGHT HEADS. Individual LIGHT HEADS can also be added later, up to a maximum of three per fixture.
  • Individually adjustable lighting
    Each LIGHT HEAD can rotate 360°, allowing multiple lamps on the same fixture to be directed independently towards different plants, objects, or surfaces.
  • Different heights and mounting options
    The AIM series ranges from the 16 cm AIM EXTRA LOW to the 80 cm AIM, alongside the AIM CEILING for wall or ceiling mounting and the freestanding AIM FLOOR for terraces and lounge areas.
  • Integrated Killflash
    The LIGHT HEADS feature an integrated Killflash that helps reduce glare while maintaining a focused, directional light effect.

Buy the in-lite AIM at Gardenlightsstore.com

Explore the complete in-lite AIM collection at Gardenlightsstore.com. With over 20 years of experience with in-lite, our lighting specialists can help you choose the right AIM model, configuration, and power supply for your garden lighting plan.

Orders over €100 qualify for free shipping across the EU, and all products come with a 5-year warranty.

Frequently asked questions

How do I make a lighting plan for my garden?

A garden lighting plan is a simple sketch that shows where every outdoor light will be installed before you buy any fixtures. A good lighting plan improves safety, highlights key features such as trees and pathways, and helps you choose the correct transformer and number of fixtures. Most gardens can be planned in five simple steps and within an hour.

Read more: How do I create a lighting plan for my garden? →

How many garden lights do I need?

This very much depends on the size of your garden, the number of features (walls, trees, borders, etc.), and your preferences. Most medium-sized gardens use somewhere between 8 and 15 fixtures, split between functional and atmospheric lighting. Larger gardens often need more. You can always buy a smaller amount of fixtures first to test how they look and then expand with more later.

Which type of garden light is best for trees?

Outdoor spotlights are generally the best choice for illuminating trees because they allow you to direct the beam exactly where it's needed. The ideal beam angle depends on the height and width of the tree, so larger trees often require a different lighting approach than smaller ornamental trees.

View product: in-lite | SCOPE | Outdoor spotlights →

Can I connect multiple in-lite fixtures to one ground cable?

Yes. Multiple in-lite fixtures can be connected to the same 12V ground cable. Each fixture is connected at the required position along the cable using an Easy-Lock connector. The total capacity of your lighting system (VA) must remain within the capacity of the in-lite transformer.

How do I choose the right outdoor spotlight for my garden?

Choose an outdoor spotlight based on what you want to illuminate, the size of the feature and the lighting effect you want to create. Compact spotlights are suitable for smaller plants and shrubs, while larger features such as mature trees may require a more powerful spotlight. For water features, choose a fixture specifically designed for that application.

Which in-lite bollard is best for a pathway?

The best in-lite bollard for a garden path depends on the lighting effect, fixture height and design you prefer. The ACE, EVO and NAIL provide more directed orientation lighting, while the DISC and LIV spread light around the fixture and onto the surrounding ground. Consider how much of the path you want to illuminate and how visible you want the fixture to be during the day.

Can I use in-lite bollards between planting?

Yes. Bollards from in-lite can be used between plants to combine orientation lighting with atmosphere. Consider the height and density of the surrounding planting when choosing the fixture. Lower bollards work well with low planting, while taller models remain more visible among grasses, shrubs and other higher planting.

Do in-lite surface-mounted fixtures need to be recessed?

No. Surface-mounted fixtures are installed directly onto a suitable surface rather than recessed into it. This makes them particularly useful where there is insufficient space or no suitable construction for a recessed fixture.

Can I combine in-lite 12V and 230V lighting in the same garden?

Yes. You can use in-lite 12V and 230V lighting within the same lighting plan, but they use separate electrical systems. The 12V fixtures connect to an in-lite HUB and low-voltage cable, while 230V fixtures use a suitable mains connection. A 230V fixture cannot be connected directly to an in-lite 12V cable.
